Signage letters and 3D sign faces
Acrylic and board letters cut clean and square. Everything Colorshade produces in lasercut signage comes off a machine like this one.
C R O P
M A R K S
Print Machines Spec Sheet
Laser Cutting Machine
180W CO2 laser cutting machine with a 3 x 4ft bed - KSh 700,000 (). Cuts and engraves acrylic, MDF, plywood, leather, fabric and paper board.
Typically 30-50 days - confirmed on enquiry
Key specifications
See all 16 specifications
Laser type
CO2 sealed glass tube
Power
180W
Working bed
3 x 4 ft, approximately 1200 x 900 mm
Cuts
Acrylic, MDF, plywood, leather, fabric, paper board
Also does
Engraving in the same pass - you do not need a second machine for detail
The Full Brief
About This Product
A marking laser writes on a surface. A cutting laser goes through it - and that is a different business entirely. With a 3 x 4ft bed and 180W of CO2 power, this machine turns sheet acrylic, MDF, plywood, leather, fabric and board into finished parts: signage letters, trophies, wall decor, packaging prototypes, gaskets and display stands.
What it costs, and why the bed size matters
The laser cutting machine price in Kenya is KSh 700,000 (). The 3 x 4ft bed is the size that matters commercially - it takes a standard sheet without you designing around the machine.
- 3 x 4ft working bed, 180W CO2 tube
- Cuts and engraves in one pass - no second machine for detail work
- Free operator training and maintenance guidance
- Tested before shipping, delivered countrywide
We run one ourselves
Everything Colorshade sells in lasercut trophies, wall decor and 3D signage comes off a machine like this, so we can tell you what it earns as well as what it costs. Message us on WhatsApp for current lead time before you commit.
Laser Cutting Machine — full specifications
Every figure we publish, in one place. If something you need to know is missing from this sheet, ask us on WhatsApp and we will find it out rather than guess at it.
Cutting performance
- Laser type
- CO2 sealed glass tube
- Power
- 180W
- Working bed
- 3 x 4 ft, approximately 1200 x 900 mm
- Cuts
- Acrylic, MDF, plywood, leather, fabric, paper board
- Also does
- Engraving in the same pass - you do not need a second machine for detail
- Positioning accuracy
- 0.05 mm
- Minimum line width
- 0.15 - 0.3 mm
What the machine needs
- Cooling
- Water cooled. A chiller or pump circuit runs alongside it.
- Extraction
- An exhaust fan and a duct to outside air. Plan this before delivery day.
- Power supply
- AC 220-240V, 50/60 Hz
- Drive
- Stepper motors and drivers on both axes
- Control
- DSP controller with its own panel, so a job can run without a PC tied to it
Artwork
- Accepted files
- PLT, DXF, AI, DST, DSB, JPG, BMP, GIF
- Design software
- Works from CorelDRAW or AutoCAD artwork, which is what most Kenyan design shops already use
Supplied by Colorshade
- Included
- Free operator training
- Lead time
- Typically 30-50 days - confirmed on enquiry
What you get
- The cutting machine with its 3 x 4 ft bed
- Water cooling unit and pump circuit
- Exhaust fan for extraction
- Control software and USB lead
- Free hands-on operator training
- Testing before shipping - the machine is run and cut before it leaves
What you can make with it
These are jobs Colorshade runs on this equipment, not a list of things it could theoretically do. Ask us what any one of them pays before you commit.
Trophies, plaques and awards
Layered acrylic and wood awards that a router cannot cut this cleanly, and that nobody in Kenya can source fast enough at short notice.
Wall decor and interior panels
Decorative screens, name panels, feature walls. Low material cost and a very high perceived value.
Packaging prototypes and boxes
Cut a real folding carton in an afternoon instead of waiting weeks for a die to be made.
Gaskets and industrial parts
Rubber, felt and board gaskets cut to a drawing, which is a quiet, steady, repeat-order trade.
Display stands and point-of-sale
Retail displays, menu holders and counter units cut flat and assembled.
Fabric and leather cutting
Bag panels, upholstery pieces and shoe components, cut and sealed in one pass.
Before you buy
What it costs to run
The price on this page is what you pay once. This is what the machine costs you afterwards — the part most suppliers leave you to find out on your own.
Consumables
No ink and no toner. Your material is the consumable.
Power
Runs from a 220-240V supply, plus the chiller and the extraction fan.
Water
The cooling circuit needs clean water kept at the right temperature. Never run the tube without it.
Wear parts
The CO2 tube is the main one and it has a finite working life. Mirrors and the focus lens need cleaning and occasional replacement.
Extraction
Filters or ducting need clearing. Cutting acrylic and MDF produces smoke that has to leave the room.
The honest one
This is the highest-maintenance machine we sell. It also has the widest range of things it can make. Both are true.
Questions buyers actually ask
What is the difference between this and a laser marking machine?
A marking laser writes on a surface. A cutting laser goes through it. That is a different business, not a bigger version of the same one - this machine turns sheet material into finished parts, so what you sell is a product rather than a service.
Will it cut metal?
No. This is a CO2 machine and it is for non-metals: acrylic, MDF, plywood, leather, fabric and board. For marking metal you want the fiber laser marker. Anyone selling you one machine for both is selling you a disappointment.
Why is the 3 x 4 ft bed the size that matters?
Because it takes a standard sheet without you redesigning the job around the machine. A smaller bed looks cheaper and then costs you in wasted offcuts and in the orders you have to turn down, every week, forever.
What do I need to have ready before it arrives?
A 220-240V supply, somewhere the extraction duct can vent to outside air, and space around the machine to load full sheets. Sort the extraction early - it is the thing people leave until delivery day and then cannot use the machine.
Is the lead time really 30-50 days?
It is an import order, so yes, and we would rather say so now than take your money and manage you afterwards. WhatsApp us for the current lead time before you commit - it moves with shipping, and we will give you the real one.
What does it actually earn?
We can tell you what it earns as well as what it costs, because everything Colorshade sells in lasercut trophies, wall decor and 3D signage comes off a machine like this. Ask us what a typical week looks like - the honest version, including the slow months.
Do I get training?
Free, hands-on, the same as every machine we supply. On this one it matters more than most: power, speed and focus settings per material are the difference between a clean cut edge and a scorched one, and that is not something you pick up from a manual.
Recommendations
You Might Also Need
Complementary products to help build your corporate bundle on the press floor.
Handheld Metal Marking Machine
from KSh 160,000 per unit
Desktop Fiber Laser Marking Machine
from KSh 900,000 per unit

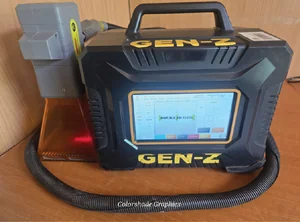

Handheld Fiber Laser Marking Machine
